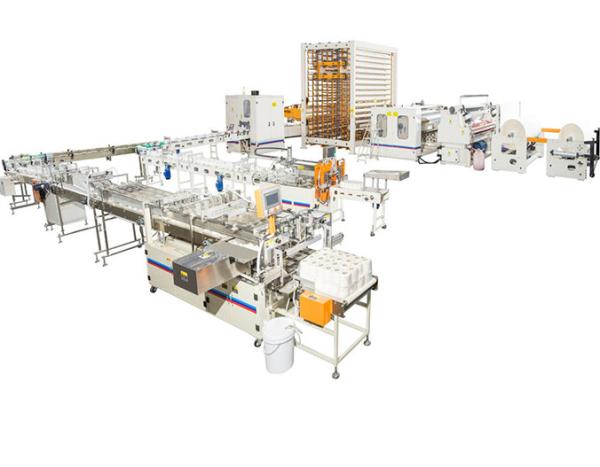

Low Noise Tissue Paper Production Line Cooperates Smoothly 380V / 50HZ 4.8 KW

    Buy cheap Low Noise Tissue Paper Production Line Cooperates Smoothly 380V / 50HZ 4.8 KW from wholesalers

    Buy cheap Low Noise Tissue Paper Production Line Cooperates Smoothly 380V / 50HZ 4.8 KW from wholesalers
    • Buy cheap Low Noise Tissue Paper Production Line Cooperates Smoothly 380V / 50HZ 4.8 KW from wholesalers

    Low Noise Tissue Paper Production Line Cooperates Smoothly 380V / 50HZ 4.8 KW

    Ask Lasest Price
    Brand Name : HENGXIN
    Model Number : HX-PB-BD3
    Certification : CE, BV and ISO
    Price : $60,000/set
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Low Noise Tissue Paper Production Line Cooperates Smoothly 380V / 50HZ 4.8 KW

    Low Noise Tissue Paper Production Line Cooperates Smoothly 380V / 50HZ 4.8 KW


    Production Description:

    This plastic bag and box drawing facial tissue production line is used for bagging and boxing of facial tissue.


    Main Technical Parameters:

    Technical SpecificationsDescriptionRemark
    Scope of applicationFacial tissue, hand towel,napkin tissue
    InfeedASF Full automaticFive sections of intelligent flexible feeding mode
    Max.design mechanical speed≤ 80 bags/minRelated to specification of packing
    Max. stable operation speed65 bags/minRelated to specification of packing
    Tissue length range (finished product)120 mm- 210 mm

    Over this size can be customized

    Tissue height range(finished product)40 mm- 100 mm
    Tissue width range(finished product)90 mm- 105 mm
    Spare parts for change size3 set

    Standard configuration quantity, the accurate specifications drawn up by the user


    Machine sizeLength 4600 mm Width 3620 mm Height 1770 mmStandard size
    Machine weightAbout 3000 KG
    Packing raw materialCPP film
    Film Thickness0.04mm-0.055mm
    Max film diameter400 mmOver this size can be customized
    Film core diameter76mmIn accordance with international standards
    Max film width340mmOver this size can be customized
    Air pressureMinimum air pressure 5MPAEquipped by user
    Power supply380V/50HZFollowing China's electric power standard
    Total drive power4.8 KWThe sum of main motor, servo motor, Sum of speed regulating motor power
    Total heating power4.6 KWSide seal, side sealing part of heating power combined
    Voltage variation+/-10%In accordance with international standards
    I/O Input/ I/O24VDCElectrical control system control circuit input
    I/O Output/ I/O24VDCElectrical control system control circuit output
    Machine run control patternThree axle servo and axle location controlThe electronic CAM motion curve
    Equipment main transmission mode20crmnti mechanical-cam+The electronic CAM drive
    Machine standard colourGray, International color RAL 7032The international color card color number RAL7032
    Packing formatThree-dimensional wrap

    Vertical sealing first and then two side sealing


    Our Advantages:

    ExperienceEstablish in the middle of 1990s, more than 25 years’ experience.
    ManufacturerWe are 100% factory.
    One-stop ServiceYour One-Stop Solution Supplier, from design, production to shipping.
    OEM&ODMOEM or ODM is available.
    Fast ProductionWe have a professional design team and a big range of machines.
    Quality ControlWe strictly follow quality management system to insure product quality.
    Production AbilityOwn the factory building and machines to make price competitive.

    Final Products Display:

    Toilet PaperToilet Paper
    Toilet Paper with Core
    Toilet Paper without Core
    Facial TissueSoft Facial Tissue
    Box Facial Tissue
    Pocket Facial Tissue
    Kitchen TowelNapkin Paper
    Printing Napkin
    Kitchen Towel

    Packing & Shipping:

    PackingWooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine.
    Packing DetailsTight the equipment in the pallet without space to ensure no rubbing during the transportation.
    ShippingSea transportation or train.
