Single Automatic High Quality Channel Log Saw Tissue Packing Machine

    Buy cheap Single Automatic High Quality Channel Log Saw Tissue Packing Machine from wholesalers

    Buy cheap Single Automatic High Quality Channel Log Saw Tissue Packing Machine from wholesalers
    • Buy cheap Single Automatic High Quality Channel Log Saw Tissue Packing Machine from wholesalers

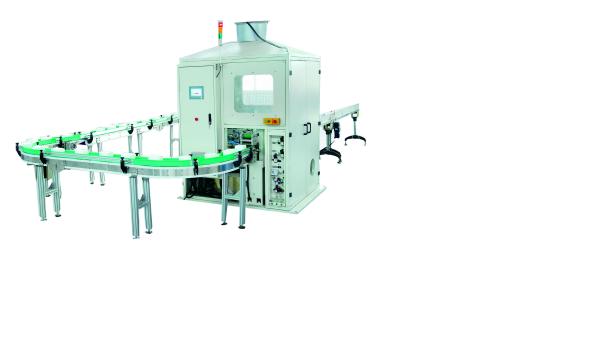

    Single Automatic High Quality Channel Log Saw Tissue Packing Machine

    Ask Lasest Price
    Brand Name : HENGXIN
    Model Number : HX-DHX-152
    Certification : CE, BV and ISO
    Price : $30,000/set
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    Single Automatic High Quality Channel Log Saw Tissue Packing Machine

    Single Automatic High Quality Channel Log Saw Tissue Packing Machine


    Product Description:

    Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixedautomatic knife grinding wheel Angle, ensure the quality of the sharpeningknife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.


    Main Technical Parameters:

    DesignationParameter values
    The length of the none cut off facial tissueminimum 500mm
    The Height of tissue30~130mm
    Machine Speed20~150cut/min
    Operating speed20~120cut/min
    Round blade outer diameteΦ610mm
    Paper cutting circular knife top speed980R/min
    Finished products specification70~300mm
    Paper width70~110mm
    Cutting Length70~300mm
    Left-over Length20~65mm
    Power11KW
    Power supply380V 50Hz
    Air source0.5~0.8MPa
    Machine Size4600*1700*2500mm
    Weight of machine2300~2600kg
    BrakeParameter setting (auto/manual)
    Stepping sharpening knifeParameter setting (auto)
    Pneumatic sharpening knifeParameter setting (auto/manual)
    Blow airWithout
    The total pressure switchValue (not)
    Human-computer interfaceCan be customized(DELTA)
    Frequency changerDELTA
    Servo DriveDELTA

    Our Advantages:

    ExperienceEstablish in the middle of 1990s, more than 25 years’ experience.
    ManufacturerWe are 100% factory.
    One-stop ServiceYour One-Stop Solution Supplier, from design, production to shipping.
    OEM&ODMOEM or ODM is available.
    Fast ProductionWe have a professional design team and a big range of machines.
    Quality ControlWe strictly follow quality management system to insure product quality.
    Production AbilityOwn the factory building and machines to make price competitive.

    Final Products Display:

    Toilet PaperToilet Paper
    Toilet Paper with Core
    Toilet Paper without Core
    Facial TissueSoft Facial Tissue
    Box Facial Tissue
    Pocket Facial Tissue
    Kitchen TowelNapkin Paper
    Printing Napkin
    Kitchen Towel

    Packing & Shipping:

    PackingWooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine.
    Packing DetailsTight the equipment in the pallet without space to ensure no rubbing during the transportation.
    ShippingSea transportation or train.
